Fast Data Analytics with Spark and Python

Fast Data Analytics with Spark
and Python (PySpark)
District Data Labs

- Installing Spark
- What is Spark?
- The PySpark interpreter
- Resilient Distributed Datasets
- Writing a Spark Application
- Beyond RDDs
- The Spark libraries
- Running Spark on EC2
Plan of Study

Installing Spark
1. Install Java JDK 7 or 8
2. Set JAVA_HOME environment variable
3. Install Python 2.7
4. Download Spark
Done!
Note: to build you need Maven
Also you might want Scala 2.11

Managing Services
Often you’ll be developing and have Hive,
Titan, HBase, etc. on your local machine. Keep
them in one place as follows:
[srv]
|--- spark-1.2.0
|--- spark → [srv]/spark-1.2.0
|--- titan
...
export SPARK_HOME=/srv/spark
export PATH=$SPARK_HOME/bin:$PATH

Is that too easy? No daemons to
configure no web hosts?
What is Spark?

YARN is the resource management and computation framework that is new as
of Hadoop 2, which was released late in 2013.
Hadoop 2 and YARN

Hadoop 2 and YARN
YARN supports multiple processing models in addition to MapReduce. All
share common resource management service.

YARN Daemons
Resource Manager (RM) - serves as the central agent for managing and
allocating cluster resources. Node Manager (NM) - per node agent that
manages and enforces node resources. Application Master (AM) - per
application manager that manages lifecycle and task scheduling

Spark on a Cluster
- Amazon EC2 (prepared deployment)
- Standalone Mode (private cluster)
- Apache Mesos
- Hadoop YARN

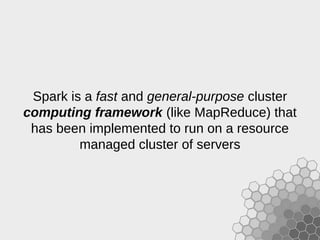

Spark is a fast and general-purpose cluster
computing framework (like MapReduce) that
has been implemented to run on a resource
managed cluster of servers

Motivation for Spark
MapReduce has been around as the major framework for distributed
computing for 10 years - this is pretty old in technology time! Well
known limitations include:
1. Programmability
a. Requires multiple chained MR steps
b. Specialized systems for applications
2. Performance
a. Writes to disk between each computational step
b. Expensive for apps to "reuse" data
i. Iterative algorithms
ii. Interactive analysis
Most machine learning algorithms are iterative …

Motivation for Spark
Computation frameworks are becoming
specialized to solve problems with MapReduce
All of these systems present “data flow” models, which can
be represented as a directed acyclical graph.
The State of Spark and Where We’re Going Next
Matei Zaharia (Spark Summit 2013, San Francisco)

Generalizing Computation
Programming Spark applications takes lessons from other higher order
data flow languages learned from Hadoop. Distributed computations
are defined in code on a driver machine, then lazily evaluated and
executed across the cluster. APIs include:
- Java
- Scala
- Python
Under the hood, Spark (written in Scala) is an optimized
engine that supports general execution graphs over an RDD.
Note, however - that Spark doesn’t deal with distributed
storage, it still relies on HDFS, S3, HBase, etc.

PySpark Practicum
(more show, less tell)

Word Frequency
count how often a word appears in a document
or collection of documents (corpus).
Is the “canary” of Big Data/Distributed computing because a distributed
computing framework that can run WordCount efficiently in parallel at
scale can likely handle much larger and more interesting compute
problems - Paco Nathan
This simple program provides a good test case for parallel processing:
• requires a minimal amount of code
• demonstrates use of both symbolic and numeric values
• isn’t many steps away from search indexing/statistics

Word Frequency
def map(key, value):
for word in value.split():
emit(word, 1)
def reduce(key, values):
count = 0
for val in values:
count += val
emit(key, count)
# emit is a function that performs distributed I/O
Each document is passed to a mapper, which does the
tokenization. The output of the mapper is reduced by
key (word) and then counted.
What is the data flow for word count?
The fast cat
wears no hat.
The cat in the
hat ran fast.
cat 2
fast 2
hat 2
in 1
no 1
ran 1
...

Word Frequency
from operator import add
def tokenize(text):
return text.split()
text = sc.textFile("tolstoy.txt") # Create RDD
# Transform
wc = text.flatMap(tokenize)
wc = wc.map(lambda x: (x,1)).reduceByKey(add)
wc.saveAsTextFile("counts") # Action

Resilient Distributed Datasets

Science (and History)
Like MapReduce + GFS, Spark is based on two important papers
authored by Matei Zaharia and the Berkeley AMPLab.
M. Zaharia, M. Chowdhury, M. J. Franklin, S. Shenker, and I. Stoica, “Spark: cluster
computing with working sets,” in Proceedings of the 2nd USENIX conference on Hot
topics in cloud computing, 2010, pp. 10–10.
M. Zaharia, M. Chowdhury, T. Das, A. Dave, J. Ma, M. McCauley, M. J. Franklin, S.
Shenker, and I. Stoica, “Resilient distributed datasets: A fault-tolerant abstraction for in-
memory cluster computing,” in Proceedings of the 9th USENIX conference on Networked
Systems Design and Implementation, 2012, pp. 2–2.
Matei is now the CTO and co-founder of Databricks, the
corporate sponsor of Spark (which is an Apache top level
open source project).

The Key Idea: RDDs
The principle behind Spark’s framework is the idea of RDDs - an
abstraction that represents a read-only collection of objects that are
partitioned across a set of machines. RDDs can be:
1. Rebuilt from lineage (fault tolerance)
2. Accessed via MapReduce-like (functional) parallel operations
3. Cached in memory for immediate reuse
4. Written to distributed storage
These properties of RDDs all meet the Hadoop requirements
for a distributed computation framework.

Working with RDDs
Most people focus on the in-memory caching of RDDs,
which is great because it allows for:
- batch analyses (like MapReduce)
- interactive analyses (humans exploring Big Data)
- iterative analyses (no expensive Disk I/O)
- real time processing (just “append” to the collection)
However, RDDs also provide a more general
interaction with functional constructs at a higher
level of abstraction: not just MapReduce!

Programming Spark
Create a driver program (app.py) that does the following:
1. Define one or more RDDs either through accessing data stored on
disk (HDFS, Cassandra, HBase, Local Disk), parallelizing some
collection in memory, transforming an existing RDD or by caching
or saving.
2. Invoke operations on the RDD by passing closures (functions) to
each element of the RDD. Spark offers over 80 high level operators
beyond Map and Reduce.
3. Use the resulting RDDs with actions e.g. count, collect, save, etc.
Actions kick off the computing on the cluster, not before.
More details on this soon!

Spark Execution
- Spark applications are run as independent sets of processes
- Coordination is by a SparkContext in a driver program.
- The context connects to a cluster manager which allocates
computational resources.
- Spark then acquires executors on individual nodes on the cluster.
- Executors manage individual worker computations as well as
manage the storage and caching of data.
- Application code is sent from the driver to the executors which
specifies the context and the tasks to be run.
- Communication can occur between workers and from the driver to
the worker.

Spark Execution
Application
Manager (YARN)
Driver
SparkContext
Worker Node
Executor
Task Task
Worker Node
Executor
Task Task
Worker Node
Executor
Task Task

Key Points regarding Execution
1. Each application gets its own executor for the duration.
2. Tasks run in multiple threads or processes.
3. Data can be shared between executors, but not between different
Spark applications without external storage.
4. The Application Manager can be anything - Yarn on Hadoop,
Mesos or Spark Standalone. Spark handles most of the resource
scheduling.
5. Drivers are key participants in a Spark applications; therefore
drivers should be on the same local network with the cluster.
6. Remote cluster access should use RPC access to driver.

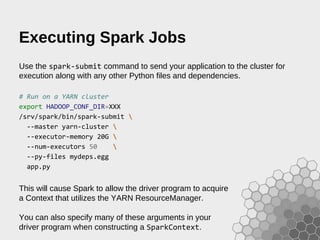

Executing Spark Jobs
Use the spark-submit command to send your application to the cluster for
execution along with any other Python files and dependencies.
# Run on a YARN cluster
export HADOOP_CONF_DIR=XXX
/srv/spark/bin/spark-submit
--master yarn-cluster
--executor-memory 20G
--num-executors 50
--py-files mydeps.egg
app.py
This will cause Spark to allow the driver program to acquire
a Context that utilizes the YARN ResourceManager.
You can also specify many of these arguments in your
driver program when constructing a SparkContext.

The Spark Master URL
Master URL Meaning
local Run Spark locally with one worker thread (i.e. no parallelism at all).
local[K] Run Spark locally with K worker threads (ideally, set this to the number of
cores on your machine).
local[*] Run Spark locally with as many worker threads as logical cores on your
machine.
spark://HOST:PORT Connect to the given Spark standalone cluster master. The port must be
whichever one your master is configured to use, which is 7077 by default.
mesos://HOST:PORT Connect to the given Mesos cluster. The port must be whichever one your is
configured to use, which is 5050 by default. Or, for a Mesos cluster using
ZooKeeper, use mesos://zk://....
yarn-client Connect to a YARN cluster in client mode. The cluster location will be found
based on the HADOOP_CONF_DIR variable.
yarn-cluster Connect to a YARN cluster in cluster mode. The cluster location will be found
based on HADOOP_CONF_DIR.

Example Data Flow
# Base RDD
orders = sc.textFile("hdfs://...")
orders = orders.map(split).map(parse)
orders = orders.filter(
lambda order: order.date.year == 2013
)
orders.cache()
1. Read Block from HDFS
2. Process RDDs
3. Cache the data in memory
Worker
Block
Worker
Block
Worker
Block
Driver

Example Data Flow
months = orders.map(
lambda order: ((order.date.year,
order.date.month), 1)
)
months = months.reduceByKey(add)
print months.take(5)
1. Process final RDD
2. On action send result back to driver
3. Driver outputs result (print)
Worker
Block Cache
Worker
Block Cache
Worker
Block Cache
Driver

Example Data Flow
products = orders.filter(
lambda order: order.upc == "098668274321"
)
print products.count()
1. Process RDD from cache
2. Send data on action back to driver
3. Driver outputs result (print)
Worker
Block Cache
Worker
Block Cache
Worker
Block Cache
Driver

Spark Data Flow
Transformations RDD Action Value

Debugging Data Flow
>>> print months.toDebugString()
(9) PythonRDD[9] at RDD at PythonRDD.scala:43
| MappedRDD[8] at values at NativeMethodAccessorImpl.java:-2
| ShuffledRDD[7] at partitionBy at NativeMethodAccessorImpl.java:-2
+-(9) PairwiseRDD[6] at RDD at PythonRDD.scala:261
| PythonRDD[5] at RDD at PythonRDD.scala:43
| PythonRDD[2] at RDD at PythonRDD.scala:43
| orders.csv MappedRDD[1] at textFile
| orders.csv HadoopRDD[0] at textFile
Operator Graphs and Lineage can be shown with the
toDebugString method, allowing a visual inspection of what
is happening under the hood.

Creating a Spark Application
Writing a Spark application in Java, Scala, or Python is similar to using the
interactive console - the API is the same. All you need to do first is to get
access to the SparkContext that was loaded automatically for you by the
interpreter.
from pyspark import SparkConf, SparkContext
conf = SparkConf().setAppName("MyApp")
sc = SparkContext(conf=conf)
To shut down Spark:
sc.stop() or sys.exit(0)

Structure of a Spark Application
- Dependencies (import)
- third party dependencies can be shipped with app
- Constants and Structures
- especially namedtuples and other constants
- Closures
- functions that operate on the RDD
- A main method
- Creates a SparkContext
- Creates one or more RDDs
- Applies transformations to RDDs
- Applies actions to kick off computation

A Spark Application Skeleton
## Spark Application - execute with spark-submit
## Imports
## Module Constants
APP_NAME = "My Spark Application"
## Closure Functions
## Main functionality
def main(sc):
pass
if __name__ == "__main__":
# Configure Spark
conf = SparkConf().setAppName(APP_NAME)
# Execute Main functionality
main(sc)

Two types of operations on an RDD:
○ transformations
○ actions
Transformations are lazily evaluated - they aren’t
executed when you issue the command.
RDDs are recomputed when an action is executed.
Programming Model
Load Data from
Disk into RDD
Transform RDD Execute Action
Persist RDD
back to Disk

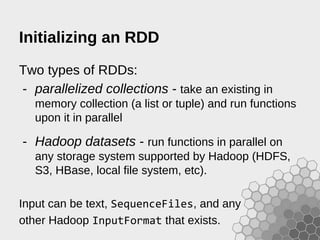

Initializing an RDD
Two types of RDDs:
- parallelized collections - take an existing in
memory collection (a list or tuple) and run functions
upon it in parallel
- Hadoop datasets - run functions in parallel on
any storage system supported by Hadoop (HDFS,
S3, HBase, local file system, etc).
Input can be text, SequenceFiles, and any
other Hadoop InputFormat that exists.

Initializing an RDD
# Parallelize a list of numbers
distributed_data = sc.parallelize(xrange(100000))
# Load data from a single text file on disk
lines = sc.textFile('tolstoy.txt')
# Load data from all csv files in a directory using glob
files = sc.wholeTextFiles('dataset/*.csv')
# Load data from S3
data = sc.textFile('s3://databucket/')
For HBase example, see: hbase_inputformat.py

Transformations
- create a new dataset from an existing one
- evaluated lazily, won’t be executed until action
Transformation Description
map(func) Return a new distributed dataset formed by
passing each element of the source
through a function func.
filter(func) Return a new dataset formed by selecting
those elements of the source on which
funcreturns true.
flatMap(func) Similar to map, but each input item can be
mapped to 0 or more output items (so
funcshould return a Seq rather than a
single item).

Transformations
mapPartitions(func) Similar to map, but runs separately on each
partition (block) of the RDD, so func must
be of type Iterator<T> => Iterator<U> when
running on an RDD of type T.
mapPartitionsWithIndex(func) Similar to mapPartitions, but also provides
func with an integer value representing the
index of the partition, so func must be of
type (Int, Iterator<T>) => Iterator<U> when
running on an RDD of type T.
sample(withReplacement, fraction,
seed)
Sample a fraction fraction of the data, with
or without replacement, using a given
random number generator seed.
union(otherDataset) Return a new dataset that contains the
union of the elements in the source dataset
and the argument.
intersection(otherDataset) Return a new RDD that contains the
intersection of elements in the source
dataset and the argument.

Transformations
distinct([numTasks])) Return a new dataset that contains the
distinct elements of the source dataset.
groupByKey([numTasks]) When called on a dataset of (K, V) pairs,
returns a dataset of (K, Iterable<V>) pairs.
reduceByKey(func, [numTasks]) When called on a dataset of (K, V) pairs,
returns a dataset of (K, V) pairs where the
values for each key are aggregated using
the given reduce function func, which must
be of type (V,V) => V.
aggregateByKey(zeroValue)(seqOp,
combOp, [numTasks])
When called on a dataset of (K, V) pairs,
returns a dataset of (K, U) pairs where the
values for each key are aggregated using
the given combine functions and a neutral
"zero" value.
sortByKey([ascending], [numTasks]) When called on a dataset of (K, V) pairs
where K implements Ordered, returns a
dataset of (K, V) pairs sorted by keys in
ascending or descending order.

Transformations
join(otherDataset, [numTasks]) When called on datasets of type (K, V) and
(K, W), returns a dataset of (K, (V, W))
pairs with all pairs of elements for each key.
Outer joins are supported through
leftOuterJoin,rightOuterJoin, and
fullOuterJoin.
cogroup(otherDataset, [numTasks]) When called on datasets of type (K, V) and
(K, W), returns a dataset of (K, Iterable<V>,
Iterable<W>) tuples. This operation is also
called groupWith.
cartesian(otherDataset) When called on datasets of types T and U,
returns a dataset of (T, U) pairs (all pairs of
elements).
pipe(command, [envVars]) Pipe each partition of the RDD through a
shell command, e.g. a Perl or bash script.
RDD elements are written to the process's
stdin and lines output to its stdout are
returned as an RDD of strings.

Transformations
coalesce(numPartitions) Decrease the number of partitions in the
RDD to numPartitions. Useful for running
operations more efficiently after filtering
down a large dataset.
repartition(numPartitions) Reshuffle the data in the RDD randomly to
create either more or fewer partitions and
balance it across them. This always
shuffles all data over the network.
repartitionAndSortWithinPartitions
(partitioner)
Repartition the RDD according to the given
partitioner and, within each resulting
partition, sort records by their keys. This is
more efficient than calling repartition and
then sorting within each partition because it
can push the sorting down into the shuffle
machinery.

Exercise: What is the difference between Map and FlatMap?
lines = sc.textFile('fixtures/poem.txt')
lines.map(lambda x: x.split(' ')).collect()
lines.flatMap(lambda x: x.split(' ')).collect()
Note the use of closures with the lambda keyword

Actions
- kick off evaluations and begin computation
- specify the result of an operation or aggregation
Action Description
reduce(func) Aggregate the elements of the dataset
using a function func (which takes two
arguments and returns one). The function
should be commutative and associative so
that it can be computed correctly in parallel.
collect() Return all the elements of the dataset as an
array at the driver program. This is usually
useful after a filter or other operation that
returns a sufficiently small subset of the
data.
count() Return the number of elements in the
dataset.

Actions
Action Description
first() Return the first element of the dataset
(similar to take(1)).
take(n) Return an array with the first n elements of
the dataset. Note that this is currently not
executed in parallel. Instead, the driver
program computes all the elements.
takeSample(withReplacement,num,
[seed])
Return an array with a random sample of
num elements of the dataset, with or
without replacement.
takeOrdered(n, [ordering]) Return the first n elements of the RDD
using either their natural order or a custom
comparator.
countByKey() Only available on RDDs of type (K, V).
Returns a hashmap of (K, Int) pairs with the
count of each key.
foreach(func) Run a function func on each element of the
dataset.

Actions
Action Description
saveAsTextFile(path) Write the elements of the dataset as a text
file (or set of text files) in a given directory
in the local filesystem, HDFS or any other
Hadoop-supported file system. Spark will
call toString on each element to convert it
to a line of text in the file.
saveAsSequenceFile(path)
(Java and Scala)
Write the elements of the dataset as a
Hadoop SequenceFile in a given path in the
local filesystem, HDFS or any other
Hadoop-supported file system. This is
available on RDDs of key-value pairs that
either implement Hadoop's Writable
interface. In Scala, it is also available on
types that are implicitly convertible to
Writable (Spark includes conversions for
basic types like Int, Double, String, etc).
saveAsObjectFile(path)
(Java and Scala)
Write the elements of the dataset in a
simple format using Java serialization,
which can then be loaded using
SparkContext.objectFile().

Was that comprehensive list really necessary?
Remember in MapReduce you only get two
operators - map and reduce; so maybe I’m just
excited at the 80+ operations in Spark!

Persistence
Spark will persist or cache RDD slices in memory on
each node during operations.
Fault tolerant - in case of failure, Spark can rebuild the RDD
from the lineage, automatically recreating the slice.
Super fast - will allow multiple operations on the same data set.
You can mark an RDD to be persisted with the cache
method on an RDD along with a storage level.
Python objects are always pickles.

Variables and Memory
Any variable or data within a closure or data
structure will be distributed to the worker nodes
along with the closure.
Usually these variables are just constants but they
cannot be shared across workers. Instead, the
following restricted structures are used for inter-
process communication:
- broadcast variables
- accumulators

Broadcast Variables
Distribute some large piece of read-only data to all workers
only once (e.g. a lookup table or stopwords).
This prevents multiple distribution per task, and efficiently
gives nodes a copy of larger data using efficient broadcast
algorithms.
import nltk
# Initialize the stopwords broadcast variable
stopwords = set(nltk.corpus.stopwords.words('english'))
stopwords = sc.broadcast(stopwords)
# Access the broadcast variable
if word in stopwords.value:
pass

Accumulators
Variables that workers can “add” to using associative operations. These
are read-only for the driver, but can be used as counters or
summations
- Spark natively supports accumulators of numeric value types and standard
mutable collections.
- Accumulators write-only to the workers.
gold = sc.accumulator(0)
def count_medals(events):
global gold,silver, bronze
for event in events:
if event.medal == 'GOLD':
gold.add(1)
results = sc.textFile('olympics.csv').filter(lambda x: x.country=='USA')
results.foreach(count_medals)
print gold.value

Key Value Pairs
Most Spark operations work on RDDs containing any type of objects, a
few special operations are only available on RDDs of key-value pairs
(“shuffle” operations, such as grouping or aggregating the elements by
a key)
In Python, these operations work on RDDs containing built-in Python
tuples such as (1, 2). Simply create such tuples and then call your
desired operation.
lines = sc.textFile("data.txt")
pairs = lines.map(lambda s: (s, 1))
counts = pairs.reduceByKey(lambda a, b: a + b)

Input and Output Formats
Selecting the best data file format:
Format Splitable Structured Description
text files yes no records are split by line
JSON yes semi log-json one record per line
CSV yes yes very common format, used with databases
Sequence files yes yes common Hadoop format for key-value data
Protocol buffers yes yes fast, space-efficient format from Google
Avro yes yes compact binary serialization format
Object Files yes yes Useful for saving data from a job that will be consumed
by shared code; however pickle is used for serialization
so your objects in code can’t change!

Parsing JSON data
import json
# parse multi-line json file
parsed = sc.textFile("data.json").map(lambda x: json.loads(x))
# parse directory of json documents
parsed = sc.wholeTextFiles("data/").map(lambda x: json.loads(x))
# write out json data
data.map(lambda x: json.dumps(x)).saveAsTextFile(output)
Be careful - improperly formatted JSON will raise an
exception! So too will trying to dump complex types like
datetime.

Parsing CSV data
import csv
from StringIO import StringIO
# Read from CSV
def load_csv(contents):
return csv.reader(StringIO(contents[1]))
data = sc.wholetextFiles("data/").flatMap(load_csv)
# Write to CSV
def write_csv(records):
output = StringIO()
writer = csv.writer()
for record in records:
writer.writerow(record)
return [output.get_value()]
data.mapPartitions(write_csv).saveAsTextFile("output/")

Parsing Structured Objects
import csv
from datetime import datetime
from collections import namedtuple
DATE_FMT = "%Y-%m-%d %H:%M:%S" # 2013-09-16 12:23:33
Customer = namedtuple('Customer', ('id', 'name', 'registered'))
def parse(row):
row[0] = int(row[0]) # Parse ID to an integer
row[4] = datetime.strptime(row[4], DATE_FMT)
return Customer(*row)
def split(line):
reader = csv.reader(StringIO(line))
return reader.next()
customers = sc.textFile("customers.csv").map(split).map(parse)

Exercise: Estimate Pi
Databricks has a great example where they use
the Monte Carlo method to estimate Pi in a
distributed fashion.

import sys
import random
from operator import add
def estimate(idx):
x = random.random() * 2 - 1
y = random.random() * 2 - 1
return 1 if (x*x + y*y < 1) else 0
def main(sc, *args):
slices = int(args[0]) if len(args) > 0 else 2
N = 100000 * slices
count = sc.parallelize(xrange(N), slices).map(estimate)
count = count.reduce(add)
print "Pi is roughly %0.5f" % (4.0 * count / N)
sc.stop()
if __name__ == '__main__':
conf = SparkConf().setAppName("Estimate Pi")
main(sc, *sys.argv[1:])

Exercise: Joins
Using the shopping dataset, in particular the
customers.csv and the orders.csv - find out
what states have ordered the most products
from the company.
What is the most popular product per state?
What month sees the most purchases for
California? Massachusetts?

Workflows and Tools
The RDD data model and cached memory computing allow Spark to quickly
and easily solve similar workflows and use cases that are part of Hadoop.
Spark has a series of high level tools at it’s disposal that are added as
component libraries, not integrated into the general computing framework:
Apache Spark
Spark SQL
Spark
Streaming
MLlib GraphX

SparkSQL
Spark SQL allows relational queries expressed in SQL or HiveQL to be
executed using Spark.
- SchemaRDDs are composed of Row objects, along with a schema
that describes the data types of each column in the row.
- A SchemaRDD is similar to a table in a traditional relational
database and is operated on in a similar fashion.
- SchemaRDDs are created from an existing RDD, a Parquet file, a
JSON dataset, or by running HiveQL against data stored in Apache
Hive.
Spark SQL is currently an alpha component.

import csv
from pyspark.sql import SQLContext, Row
def split(line):
return csv.reader(StringIO(line)).next()
def main(sc, sqlc):
rows = sc.textFile("fixtures/shopping/customers.csv").map(split)
customers = rows.map(lambda c: Row(id=int(c[0]), name=c[1], state=c[6]))
# Infer the schema and register the SchemaRDD
schema = sqlc.inferSchema(customers).registerTempTable("customers")
maryland = sqlc.sql("SELECT name FROM customers WHERE state = 'Maryland'")
print maryland.count()
if __name__ == '__main__':
conf = SparkConf().setAppName("Query Customers")
sqlc = SQLContext(sc)
main(sc, sqlc)

Spark Streaming
Spark Streaming is an extension of the core Spark API that enables
scalable, high-throughput, fault-tolerant stream processing of live data.
- Data can be ingested from many sources like Kafka, Flume, Twitter,
ZeroMQ, Kinesis or TCP sockets
- Can be processed using complex algorithms expressed with high-level
functions like map, reduce, join and window.
- Finally, processed data can be pushed out to file systems, databases, and
live dashboards; or apply Spark’s machine learning and graph processing
algorithms on data streams.

Spark MLLib
Spark’s scalable machine learning library consisting of common
learning algorithms and utilities, including classification, regression,
clustering, collaborative filtering, dimensionality reduction, as well as
underlying optimization primitives.
Highlights include:
- summary statistics and correlation
- hypothesis testing, random data generation
- Linear models of regression (SVMs, logistic and linear regression)
- Naive Bayes and Decision Tree classifiers
- Collaborative Filtering with ALS
- K-Means clustering
- SVD (singular value decomposition) and PCA
- Stochastic gradient descent
Not fully featured, still experimental - but gets a ton of attention!

Spark GraphX
GraphX is the (alpha) Spark API for graphs and graph-parallel
computation.
- GraphX extends the Spark RDD by introducing the Resilient
Distributed Property Graph: a directed multigraph with properties
attached to each vertex and edge.
- GraphX exposes a set of fundamental operators (e.g., subgraph,
joinVertices, and aggregateMessages) as well as an optimized
variant of the Pregel API.
- GraphX includes a growing collection of graph algorithms and
builders to simplify graph analytics tasks.

Setting up EC2
Spark is for clustered computing - if your data is too large to
compute on your local machine - then you’re in the right
place! An easy way to get Spark running is with EC2.
- a cluster of 5 slaves (and 1 master) used at a rate of
approximately 10 hours per week will cost you
approximately $45.18 per month.
- go to the AWS Console and obtain a pair of EC2 keys.
Add the following to your bash profile:
export AWS_ACCESS_KEY_ID=myaccesskeyid
export AWS_SECRET_ACCESS_KEY=mysecretaccesskey

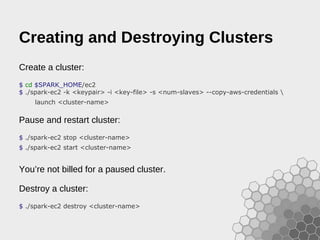

Creating and Destroying Clusters
Create a cluster:
$ cd $SPARK_HOME/ec2
$ ./spark-ec2 -k <keypair> -i <key-file> -s <num-slaves> --copy-aws-credentials
launch <cluster-name>
Pause and restart cluster:
$ ./spark-ec2 stop <cluster-name>
$ ./spark-ec2 start <cluster-name>
You’re not billed for a paused cluster.
Destroy a cluster:
$ ./spark-ec2 destroy <cluster-name>

Synchronizing Data
SSH into your cluster to run jobs:
$ ./spark-ec2 -k <keypair> -i <key-file> login <cluster-name>
rsync data to all the slaves in the cluster:
$ ~/spark-ec2/copy-dir
But normally you’ll just store data in S3 and SCP your driver files to the
master node. Note that if you terminate a cluster, all the data on the
cluster is lost.
To access data on S3, use the s3://bucket/path/ URI

Be sure to check your EC2 Console
Don’t get a surprise bill!

Fast Data Analytics with Spark and Python

Recommended

More Related Content

What's hot (20)

Viewers also liked (10)

Similar to Fast Data Analytics with Spark and Python (20)

More from Benjamin Bengfort (20)

Recently uploaded (20)

Fast Data Analytics with Spark and Python
