Fault Tolerance in System Design

Systems that are designed with fault tolerance will continue to function even in the event of malfunctions or failures. Disruption risk rises with the volume and complexity of modern systems. Sustaining availability, dependability, and a flawless user experience requires fault tolerance. To lessen the effects of hardware malfunctions, software defects, and network problems, it employs techniques including data replication, error detection, and automated recovery.

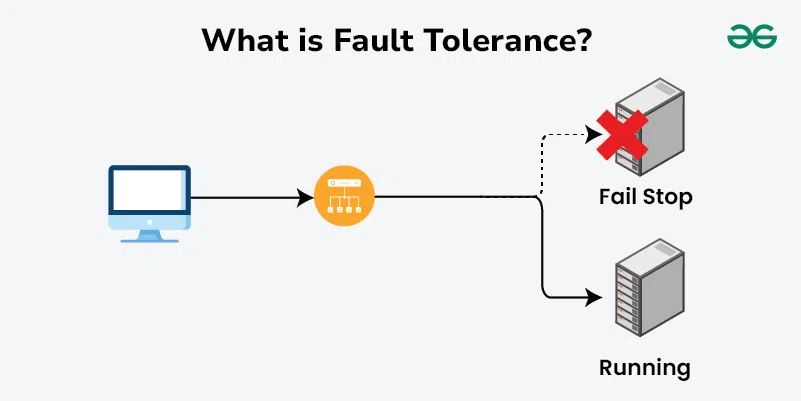

What is Fault Tolerance?

Fault tolerance refers to a system's capacity to keep working even in the face of hardware or software issues. Redundancy, error detection, and error recovery techniques must be used to avoid a catastrophic failure. This will allow the system to continue operating or deteriorate in performance at a slower rate. Reducing the impact of errors and maintaining a stable and accessible service even in the face of disruptions are the objectives.

Situations where fault tolerance is crucial

• RAID (Redundant Array of Independent Disks): In storage systems, RAID configurations distribute data across multiple disks with redundancy, allowing the system to continue functioning even if one disk fails.
• Load Balancing: Distributing network traffic across multiple servers ensures that if one server fails, others can still handle the load.
• Clustering: Creating clusters of servers ensures that if one server fails, another can take over the workload seamlessly.
• Virtualization: Running virtual machines on a server allows for easy migration of workloads to another server in case of hardware failure.
• Microservices Architecture: Breaking down applications into smaller, independent services allows for the isolation of faults, preventing the entire system from failing if one service encounters issues.
• Distributed Cloud Architecture: Distributing applications across multiple cloud regions or providers enhances fault tolerance by reducing the impact of a failure in a specific region or service.

Replication Strategies for Enhancing Fault Tolerance

1. Full Replication

Complete duplication of system or data across multiple nodes.

Implementation: Every node maintains an identical copy of the entire system or dataset.

• Advantages of Full Replication:
  • Straightforward fault tolerance.
  • Seamless switch to a backup node in case of failure.
• Challenges of Fulll Replication:
  • Resource-intensive, as each node hosts a full replica.
  • Synchronization mechanisms are crucial for consistency.

2. Partial Replication

Selective duplication of critical components or data.

Implementation: Replicates only essential elements for system functionality, optimizing resource usage.

• Advantages of Partial Replication:
  • Resource efficiency.
  • Focuses on replicating key components.
  • Requires careful selection of components for replication.
• Challenges of Partial Replication:
  • Complexity in determining which parts are critical.
  • Synchronization challenges for selectively replicated components.

3. Shadowing or Passive Replication

Maintaining passive copies that activate only upon primary system failure.

Implementation: Inactive replicas become active when the primary system encounters a fault.

• Advantages of Shadowing or Passive Replication:
  • Resource efficiency during normal operation.
  • Quick response in case of a failure.
• Challenges of Shadowing or Passive Replication:
  • Synchronization during the transition from passive to active state.
  • Effective fault detection mechanisms are crucial.

4. Active Replication

All replicas actively process the same inputs concurrently.

Implementation:

Requests are distributed to all replicas, and their outputs are compared to determine the correct result.

• Advantages of Active Replication:
  • High fault tolerance.
  • Continued processing even if some replicas fail.
• Challenges of Active Replication:
  • Increased communication overhead due to multiple replicas actively processing.
  • Managing consistency among active replicas is complex.

Fault Tolerance vs. High Availability Load Balancing

Below are the differences between Fault Tolerance and High Availability Load Balancing:

Challenges in Implementing Fault Tolerance

• Scalability Issues: Scalability refers to the ability of a system to handle increasing workload or data size gracefully without sacrificing performance or availability. Scalability challenges in fault tolerance involve ensuring that fault-tolerant mechanisms can scale alongside the system's growth.
• Performance Impacts: Fault tolerance mechanisms, such as redundancy and error correction, can impact system performance. This challenge involves minimizing performance degradation while maintaining high fault tolerance.
• Cost Considerations: Implementing robust fault tolerance strategies often incurs additional costs due to the need for redundant hardware, software licenses, maintenance, and monitoring systems.
